Temperature mapping is a temporary, structured study that qualifies whether a space holds its required temperature range, while temperature monitoring is the continuous, ongoing measurement that confirms that control every day after. Most facilities need both: mapping first, to prove the space is fit for purpose and to justify where permanent probes go, then monitoring, to catch excursions in real time. Guidance from the WHO and the MHRA both treat mapping as the evidence base for monitoring, not a substitute for it.
TL;DR:
- Mapping should be performed before commissioning or major reconfiguration to identify hot and cold spots, guiding appropriate placement of permanent monitoring probes.
- Typically, around 20 sensors are recommended for medium cold-storage units, placed at corners, near doors, vents, and at various heights for accurate spatial analysis.
- Continuous monitoring devices should be installed at locations confirmed by mapping to cover detected temperature extremes and hot or cold spots.
- Routine remapping is advised approximately every two years or after significant changes, seasonal extremes, or suspected excursions to ensure ongoing temperature control.
- Proper calibration, synchronized clocks, detailed recordkeeping, and a contingency plan are crucial for credible mapping, monitoring, and audit compliance.
Temperature mapping is a defined, time-limited exercise. You place multiple sensors throughout a room, cold store or vehicle, run them for a set period under representative conditions, then analyse the results to find hot spots, cold spots and any areas that drift outside the required range. The USP describes mapping as a qualification technique used to determine whether a storage area maintains the temperature it’s meant to, and to inform where continuous monitoring devices should sit afterwards, according to USP guidance.

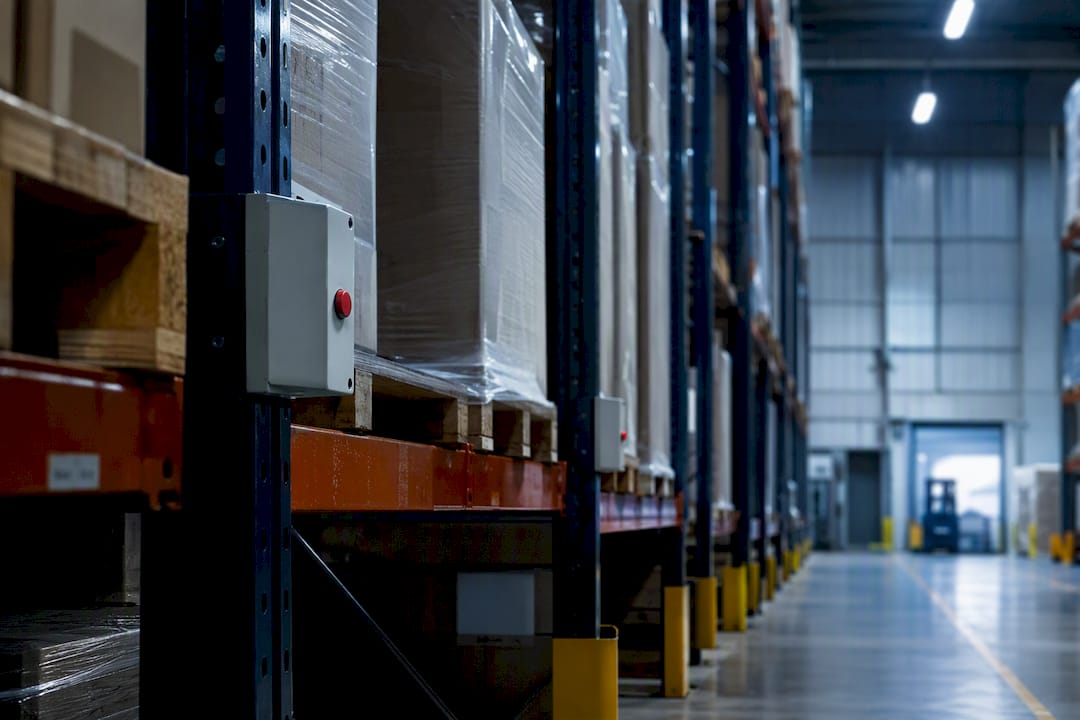

Temperature monitoring, by contrast, is permanent and ongoing. A small number of calibrated sensors, placed where mapping showed the greatest risk, record continuously and trigger alarms when readings move outside set limits. It doesn’t tell you what’s happening across the whole room; it tells you what’s happening at the points that matter most, all the time.
The practical differences show up in how each is used:
For warehouse and pharmaceutical storage managers, this distinction affects procurement and compliance planning directly. A mapping study is a project with a start and end date, often contracted out or run with hired equipment. Monitoring is infrastructure you own and maintain, with its own calibration, alarm and recordkeeping obligations that continue for as long as the space is in use.
Deciding which action to take next comes down to what’s changed, what’s at risk, and what evidence you already hold.
Mapping earns its keep by telling you where to put the permanent probes. The MHRA is direct on this point: monitoring equipment should be positioned according to what mapping reveals, specifically to cover the extremes and any hot or cold spots identified during the study. Skipping that step means your monitoring probes might be sitting somewhere convenient rather than somewhere that actually matters.
A mapping study follows a consistent structure regardless of whether you’re mapping a domestic-style vaccine fridge or a large ambient warehouse.
Scope and approve the protocol. Before anything is switched on, define the volume being mapped, the risk features inside it (doors, loading bays, HVAC vents, racking and stacking patterns) and the acceptance criteria the space must meet. Get the protocol signed off before the study starts, not after.
Decide sensor numbers and placement. WHO guidance on cold chain mapping recommends a 3D approach: sensors go into corners, near doors, near evaporators or vents, and at varying heights to reflect stratification. For a medium cold-storage unit, WHO’s guidance points to around 20 sensors plus one ambient reference sensor, scaling up for larger volumes, as set out in the WHO mapping guidance. The WHO mapping tool suggests at least 21 sensors for some equipment examples and can convert sensor outputs into a colour-coded 3D sketch showing which areas sit outside the desired range.
Run the study under representative conditions. WHO recommends continuous recording for at least 48 hours, extending to 72 hours or longer where door openings, stock loading or seasonal extremes need to be captured, according to the same WHO guidance. Record minimum, maximum, mean and mean kinetic temperature (MKT) across the full run, since a single average can hide short but significant excursions.
Analyse and act. Plot the results against a 3D sketch of the space, mark every hot and cold spot, and produce a risk assessment that explains what caused each deviation and what remediation is needed, whether that’s relocating stock, adjusting HVAC settings or repositioning refrigeration units.
Know when to remap. WHO suggests routine remapping roughly every two years for vaccine cold rooms, alongside remapping after major repairs or reconfiguration, per the same WHO mapping guidance. Treat that as a starting point and adjust the interval to your own risk assessment and product value.
Pro Tip: Run your mapping study during the highest-risk period you can reasonably schedule, whether that’s peak summer heat or the busiest loading day, rather than a quiet week when the result will look better than reality.
Once mapping has told you where the risk sits, monitoring is what keeps that risk under control every day. There are several practical device categories to choose between.
Recording intervals matter more than they might seem. Australia’s National Vaccine Storage Guidelines recommend downloadable data loggers set to a minimum five-minute recording interval where applicable, alongside audible and back-to-base alarms and a weekly review of downloaded reports. Automated and back-to-base systems reduce the manual download burden, but they don’t remove the need for that weekly review or for a documented contingency plan if the system itself fails, a point the same guidelines make directly. Our guide to temperature monitoring solutions for cold chain management goes further into device selection for cold chain settings.
Alarms are only useful if someone acts on them. Build an escalation list with named responsible staff and backup contacts, and test the full alarm chain periodically, including after-hours notifications, rather than assuming it works because it worked once at installation. Monitoring data also feeds directly into audits and continuous improvement: trend reports reveal slow drift long before it becomes an excursion, and every corrective action taken should be documented against the specific reading that triggered it.
Reliable results start before the study even begins. Before deploying any device, check its calibration status, temperature range, memory capacity and battery life against the length of the study or the monitoring interval you’ve planned.
Sensor numbers scale with space. A small pharmacy fridge might need only two or three loggers, a medium cold room ten to twenty depending on its layout, and a large warehouse bay considerably more, following the scaling principle in the USP mapping guidance, which links probe counts to area size and complexity rather than a fixed number.
Before starting, synchronise every device’s clock, label each sensor with its serial number and location, and keep at least one spare calibrated logger on hand in case of failure mid-study.
Pro Tip: Label sensors by position, not just serial number, so a “top shelf, rear left” reading is obvious in the report without cross-referencing a separate map.
Several bodies publish mapping and monitoring guidance, and while none of it is identical, the common threads are consistent. The WHO sets out mapping methodology for cold chain equipment, the MHRA frames mapping as evidence of area suitability for pharmaceutical storage, the USP treats mapping as a qualification chapter with probe placement guidance, and the National Vaccine Storage Guidelines set operational rules for vaccine storage specifically.
Across these sources, several expectations repeat:
None of this guidance is universally binding on every facility. Confirm the rules that apply to your specific licence, product category and jurisdiction rather than assuming any single guideline covers your situation, since obligations differ between vaccine storage, general pharmaceutical wholesaling and industrial warehousing.
Every mapping report and monitoring log is only as credible as the calibration behind it. Calibrate all loggers and probes before a mapping study begins, and keep traceable certificates on file, NATA-accredited where the application calls for it. Our explainer on NATA calibration standards covers what that accreditation actually verifies.
Reports should include the probe serial numbers used, a placement diagram showing exactly where each sensor sat, and confirmation that device clocks were synchronised before the run started.
Calibration isn’t a one-off task either; our piece on why regular calibration matters for industrial accuracy explains how drift accumulates between checks if the interval is left too long.
Use this before you start a study or audit an existing monitoring setup.
Running a mapping study or maintaining a monitoring system depends on equipment you can trust the readings from. PCS Precision provides calibration for temperature loggers, probes and related instruments, along with hire equipment for short-term mapping studies and on-site servicing for permanent monitoring installations.
Because PCS Precision supports multiple equipment brands, facilities don’t need to replace an entire monitoring fleet just to keep it calibrated and compliant. Emergency support helps ensure a failed logger or an out-of-range alarm during a live mapping run does not cause a lost study.
Favour a full mapping study when the product is high value or the facility is new; lean on incremental monitoring once placement is already justified by a prior study. The real trade-off is downtime and hire cost against the cost of an undetected excursion. When in doubt, map first, then monitor with confidence.
— Nima
Whether you need traceable calibration before a mapping study, hire equipment for a short-term run, or ongoing servicing for permanent monitoring probes, PCS Precision’s calibration and hire services cover the equipment side of both tasks. Get in touch to scope a mapping study or a monitoring installation and request a tailored quote.
Temperature mapping qualifies a storage space by identifying hot spots, cold spots and any areas outside the required range before that space is relied on for stock. It gives facilities the evidence needed to justify where permanent monitoring probes should be placed, as outlined in USP guidance.
It’s a temporary study using multiple sensors placed throughout a room, cold store or vehicle, run continuously for a set period, then analysed to produce a spatial picture of temperature behaviour. The WHO recommends running this for at least 48 hours under representative conditions.
USP chapter 1079.4 treats mapping as a qualification technique for determining whether a storage area holds its required temperature, and it provides probe placement examples along with suggested probe counts that scale with area size, according to the USP chapter itself.
Mapping studies typically use portable data loggers with an ambient reference sensor, calibrated beforehand and placed in corners, near doors and near vents or evaporators. Australia’s National Vaccine Storage Guidelines describe using these portable loggers specifically to construct temperature maps of vaccine refrigerators.
