Dini Argeo DGT100 - Weight Indicator/Universal Repeater
Dini Argeo DGT100 - Weight Indicator/Universal Repeater
Dini Argeo DGT100 - Weight Indicator/Universal Repeater
Dini Argeo DGT100 - Weight Indicator/Universal Repeater

Dini Argeo DGT100 - Weight Indicator/Universal Repeater

$2,133.00

The Dini Argeo DGT100 is a heavy-duty industrial weight indicator and repeater featuring a large 100mm high-brightness LED display for exceptional visibility over long distances. Designed for indoor and outdoor applications, the DGT100 is housed in an IP68 stainless steel enclosure and is suitable for weighing systems, process control, batching, logistics, and vehicle weighing. With multiple communication options, legal-for-trade approvals, and advanced weighing functions, it is ideal for demanding industrial environments.



Choose Model: TA=Trade Approved

Product No. Description Price
DGT100BC-1-TA Stainless Steel Indicator $2,133.00

Product Quantity:

Download Product Brochure
Product Features
  • Large 100mm LED display for excellent long-distance visibility
  • High-brightness display suitable for outdoor use and direct sunlight
  • Rugged IP68 stainless steel enclosure
  • Supports up to four independent weighing systems
  • Connects to up to eight analogue load cells
  • Advanced weighing functions including peak hold, check weighing, batching and counting
  • Programmable inputs and outputs for automation
  • Multiple communication options for PLCs, printers and PCs
  • DINI Tools software for simple configuration
  • Legal-for-trade approved for commercial weighing applications
  • Ideal for weighbridges, silos, hoppers, process control, warehouses and industrial manufacturing
Technical Features
  • Display: 6-digit, 100mm high ultra-bright LED display
  • Display Visibility: Over 25m
  • Viewing Angle: Up to 120°
  • Enclosure: AISI 304 Stainless Steel
  • Protection Rating: IP68
  • Keyboard: 5 waterproof function keys
  • Internal Resolution: Up to 3,000,000 divisions
  • Display Resolution: Up to 800,000 divisions
  • Approved Resolution: 10,000e or 2 × 3,000e (Legal for Trade)
  • A/D Conversion: 24-bit Sigma-Delta
  • Conversion Speed: Up to 400 conversions/second
  • Load Cell Capacity: Up to 8 × 350Ω analogue load cells
  • Weighing Channels: Up to 4 independent weighing systems
  • Power Supply: 12–24VDC with internal 110–240VAC power supply
  • Communication Ports:
    RS232
    RS485
    Optional Profibus
    Optional 16-bit analogue output (4–20mA / 0–5V / 0–10V)

Options

Enhance your equipment with compatible add-ons for extended functionality.

No Trade Model Name Variant Price Product Quantity Add To Cart

Recommended Products

Discover popular tools frequently bought together with your selected items.

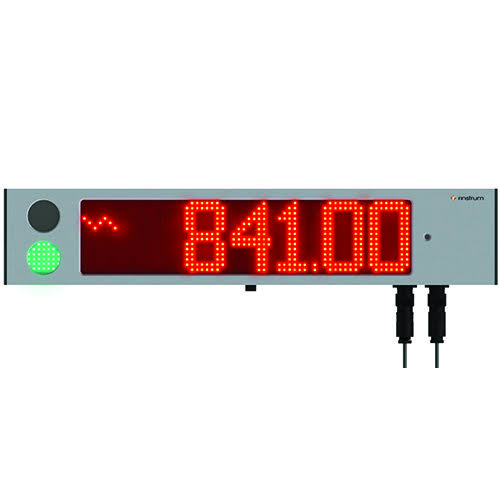

Rinstrum D841 Range - Remote Displays (100mm Digits)
