Rinstrum D841 Range - Remote Displays (100mm Digits)
Rinstrum D841 Range - Remote Displays (100mm Digits)
Rinstrum D841 Range - Remote Displays (100mm Digits)
Rinstrum D841 Range - Remote Displays (100mm Digits)

Rinstrum D841 Range - Remote Displays (100mm Digits)

$2,725.00 + GST

The Rinstrum D841 Series Remote Display is a high-visibility industrial LED display designed for long-distance weight viewing and operator communication. Featuring 100mm super-bright alphanumeric characters, integrated traffic lights, and support for both weight data and custom messages, the D841 is ideal for weighbridges, concrete batching plants, warehouses, and industrial processing facilities. With IP65 protection, multiple communication options, and optional scrolling message capability, the D841 delivers reliable performance in demanding indoor and outdoor environments.



Choose Model: TA=Trade Approved - See Options

Product No. Power Supply Price
D841-K801-AC 90-240VAC $2,725.00
D841-K801-AC-E 90-240VAC + Ethernet $3,079.00
D841-K801-DC 24VDC or 12VDC $2,825.00
D841-K801-DC-E 24VDC or 12VDC + Ethernet $3,180.00

Product Quantity:

Download Product Brochure
Product Features
  • Large-format remote display for clear long-distance weight viewing
  • Full alphanumeric capability allows display of product names, instructions, and messages
  • Ideal for weighbridges, concrete batching plants, loading stations, and industrial facilities
  • Super-bright LEDs ensure excellent visibility in indoor and outdoor environments
  • Integrated traffic light functionality helps manage vehicle and operator flow
  • Compatible with a wide range of weighing indicators and systems
  • Wide 120° viewing angle improves readability from multiple positions
  • Auto-configuration simplifies installation and commissioning
  • Optional scrolling message function allows operator instructions and site messaging
  • Rugged IP65 construction designed for harsh industrial environments
  • Available with serial or Ethernet communications for easy system integration
Technical Features
  • 100mm (4") high super-bright red LED characters
  • Full alphanumeric display with up to 7 characters
  • 14 x 64 LED dot matrix display (14 x 8 LEDs per character)
  • Visibility up to 50m at a 120° viewing angle
  • Displays weight values, text messages, and ASCII characters
  • Supports kg, lb, t, g, tn, and oz annunciation
  • Communication options: RS232, RS485, or optional Ethernet
  • Auto-detecting baud rate and protocol configuration
  • IP65-rated sealed aluminium housing
  • AC power: 110–240VAC, 50/60Hz
  • Optional DC power: 12–24VDC
  • Operating temperature: -20°C to +60°C
  • Built-in red and green traffic light indicators
  • Optional scrolling message firmware (up to 150-character messages)

Options

Enhance your equipment with compatible add-ons for extended functionality.

No Model Name Variant Price Product Quantity Add To Cart
1 - K802 Scrolling Firmware - 150 Characters - $79.00

Recommended Products

Discover popular tools frequently bought together with your selected items.

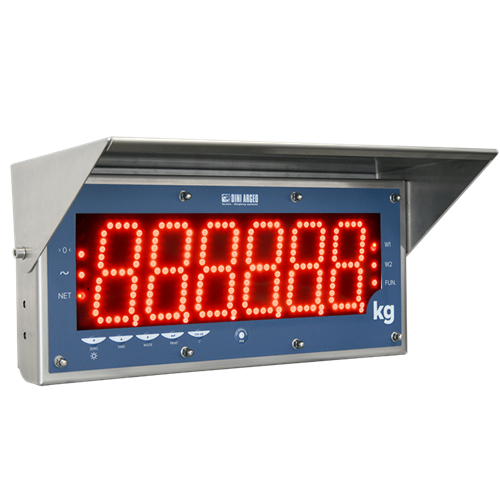

Dini Argeo DGT100 - Weight Indicator/Universal Repeater
